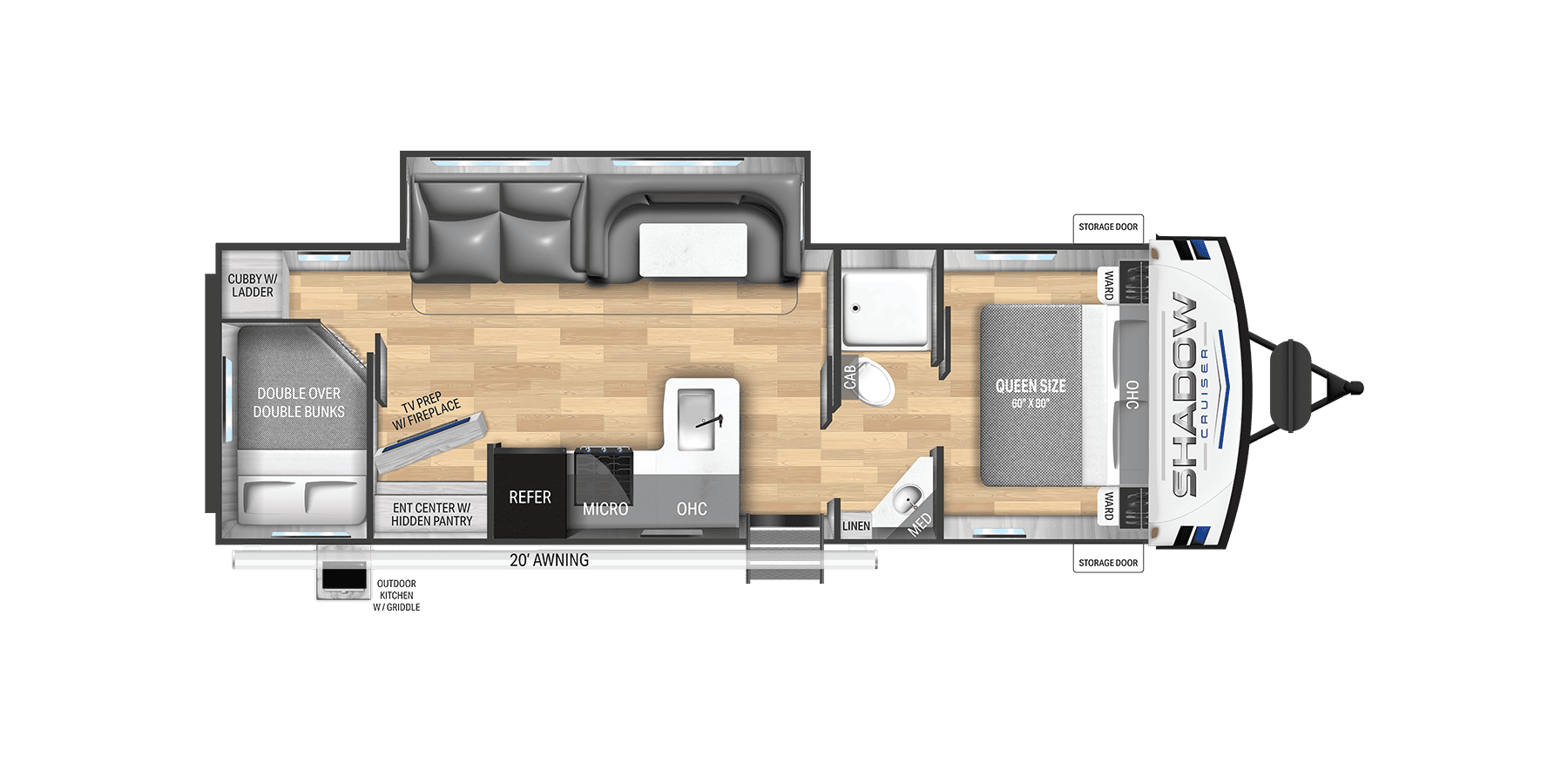

Shadow Cruiser 292BHS
Product Specs
TITLE
292BHS
GWVR
9740
DRY WEIGHT
6932
HITCH WEIGHT
940
CARGO CAPACITY
2776
WIDTH
8'-3/8"
HEIGHT
11'-6"
LENGTH
33'-11"
SQFT
276
SLEEP CAPACITY
9+
AXLES
2 x 4400
FRESH TANK
46
GREY TANK
60
BLACK TANK
30
WATER HEATER
0
FURNACE
30,000 BTU
AIR CONDITIONER
13,500 BTU
AIR CONDITIONER2
AIR CONDITIONER3
LP TANK CAPACITY
2 x 20 LBS
REFRIGERATOR
10.7 Cu Ft/12V/Res.
CONVERTOR
55 AMP
SHORE POWER
30 AMP
NUMBER OF SLIDES
1
MAIN SLIDE HEIGHT
5'-11"
BEDROOM HEIGHT
6'-8"
AWNING LENGTH
20'
COOK TOP
3 Burner
TRADITIONAL OVEN
Yes
CONVECTION OVEN
No
GARAGE LENGTH
GENERATOR PREP
N/A
BED SIZE
Queen
* Overall length defined as tow point (Ball coupler for travel trailers / King pin for fifth wheel trailers) to rear bumper. It does not include rear ladder or spare tire. Optional pin boxes will affect overall length.
** Garage length is defined as ramp door to full interior wall. Standard or optional equipment may reduce overall garage dimensions.
Features
-
Top Selling Features
Painted, molded fiberglass front cap
Azdel composite laminated sidewalls
5-sided aluminum framing
Surround seal slide system with rain gutter
5/8 seamless floor decking
Residential 60″x80″ Queen Bed with Store More Base
Seamless edge countertops for enhanced durability
Dual ducted A/C and high BTU ducted furnace
Power Stabilizer Jacks
-
Exterior Features
Rain-away barreled roof
Over 40 cubic feet of pass-through storage
XL baggage doors with slam latches and magnet catches
30″ main entry door with solid entry step
Telescoping Handrail
Dual 20lb. LP tanks
Large power awning with LED lights
Tinted windows
TPO roof membrane
Extended season package including enclosed underbelly with forced heat.
Aluminum rims
“On the Go” ladder prepped
WiFi prep and a long range antenna
13.5K BTU A/C
On-Demand water heater
Exterior speakers
Black tank flush
Spray port
Cable/Satellite prep
Power Stabilizer Jacks
-
Interior Features
Pantry and/or bonus closet (most floor plans)
Batten Strip Ceiling Lighting with Dimmer
Numerous 110 & USB outlets
Luxurious tri-fold sofa and/or Store More Dinette
Night shades
Hidden Hinges on Cabinetry
Roller bearing drawer guides
Stainless farm style sink with high rise faucet
Flush mount 3 burner range/oven with glass cover
Easy to operate master control
10 cubic feet 12v refrigerator
Battery disconnect
Flip Up Dinette Storage
Soft touch bunk mats on bunk models
Fireplace (select models) -
Heat, Air, Power and Water Features
Dual ducted 13.5 BTU A/C
On-Demand water heater
Black tank flush
-
Kitchen Features
Hidden Hinges on Cabinetry
Seamless edge counter tops
Steel ball-bearing, full extension drawer guides
High-rise kitchen faucet with stainless under mount farm style sink
Flush mount 3 burner range/oven with glass cover
Power range with hood
10 cubic feet 12v refrigerator
-
Construction Features
Powder coated structural steel I-beam frames
Spring axles with easy lube hubs and self adjust brakes & extended warranty
Azdel composite laminated sidewalls
5 sided aluminum framing
5/8″ tongue and groove plywood floors
3/4″ plywood slide out floor with coating
Plywood drawers, dinette, bed and bunk bases
-
Bedroom Features
- Residential 60″x80″ Queen Bed with Store More Base
- Hanging storage
- USB charging ports
- Bonus closet (most floor plans)
- Industry first under-bed pet palace or can be used for storage
- Ceiling vent with fan
-
Bathroom Features
- Spacious shower or tub
- Skylight over shower
- Ceiling vent with fan
- Large medicine cabinet with mirror
- High rise faucet over sink
- Bonus shelf with towel hangers
-
Tires & Axles
- Spring axles with easy lube hubs and self adjust brakes & extended warranty
- Spare tire with carrier
- Galvanized steel wheel wells
-
Storage Features
- Ove 40 cubic feet of pass thru storage
- Slam latch baggage doors with magnetic latches
- LED-lit pass-thru storage
-
Safety Features
- Fire extinguisher
- LP detector
- Smoke detector
- Spare tire
32″ LED TV (180MBS only)
39″ LED TV
Theater seating with table – in place of U – dinette
Theater seating – in place of Tri-fold sofa
Power tongue jack
8 cubic foot double door gas/electric refrigerator (standard on West Coast models)
15K BTU A/C upgrade (in place of the 13.5K)
50 amp service (239BS or lager models)
2nd 13.5k BTU A/C (requires 50 amp service)
SOL-190
SOL-380
40″ Smart TV
